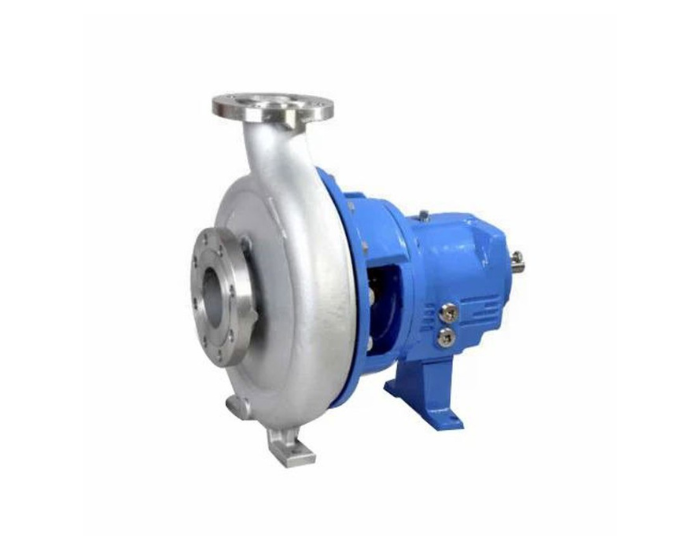

Chemical Process Pumps

Features:

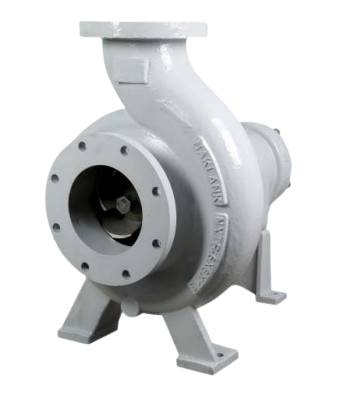

All the wetted parts are made from investment castings using lost wax process, giving excellent surface finish, sound casting, giving minimum resistance to flow resulting in better efficiencies.

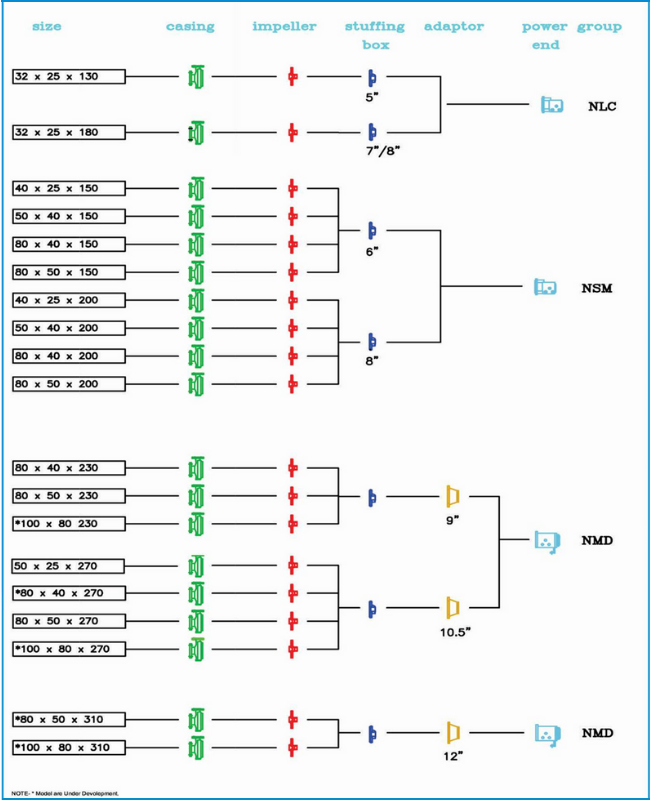

Maximum interchangeability gives minimum spare parts inventory.
Hydraulic performance painted by simple external axial adjustment of impeller wear.
Exclusive balanced thrust.
Standard dimensions cut layout design cost.
Standard foundation save installation and drawing time, talent and money.

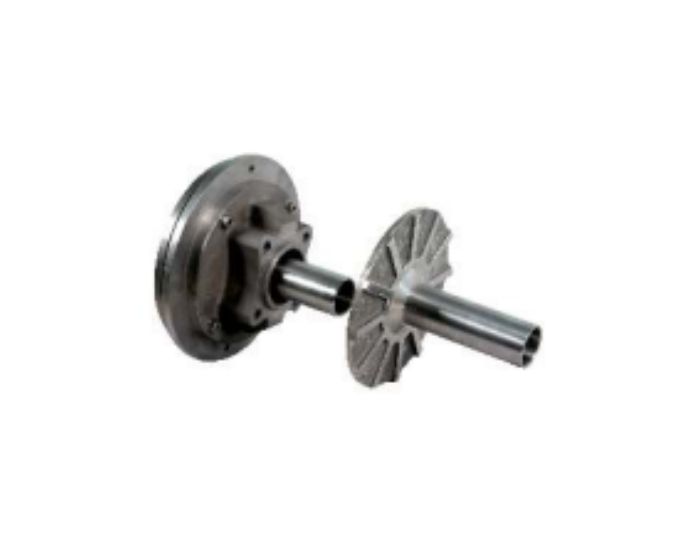

Fully open impeller with Back pump out vanes reduces stuffing box pressure and prevents entrances of solid and meets low NPSH requirements.
Greater quality control and accuracy in production of every pump with the modern machining operations.

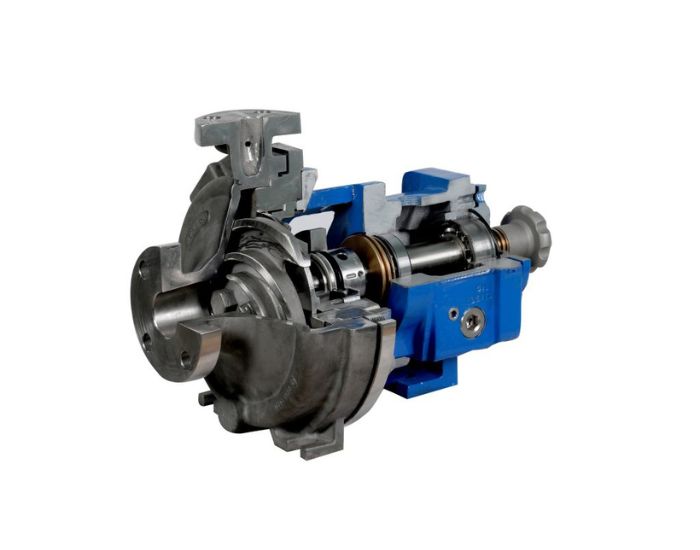

Back pull-out design, permits quick inspection or repairs of rotating elements without disturbing electrical and piping connections resulting in minimum down-time.

PERFORMANCE RANGE
HEAD – UPTO 65 MTS
CAPACITY – UPTO 1030 M3/HR
POWER – UPTO 261 KW
RPM – 1450 50HZ
MOC – SS304, SS316, SS316L, CD4MCU,
ALLOY-20, CZ100,DUPLEX SS,
HASTELLOY B, HASTELLOY C, NICKEL
MONEL, NI-HARD

PERFORMANCE RANGE
HEAD – UPTO 130 MTS
CAPACITY – UPTO 512 M3/HR
POWER – UPTO 149 KW
RPM – 1450/2900 50HZ
MOC – SS304, SS316, SS316L, CD4MCU,
ALLOY-20, CZ100, DUPLEX SS,
HASTELLOY B, HASTELLOY C, NICKEL
MONEL, NI-HARD

PERFORMANCE RANGE
HEAD – UPTO 65 MTS
CAPACITY – UPTO 80 M3/HR
POWER – UPTO 30 KW
RPM – 1450/2900 50HZ
MOC – SS304, SS316, SS316L, CD4MCU,
ALLOY-20, CZ100, DUPLEX SS,
HASTELLOY B, HASTELLOY C, NICKEL
MONEL, NI-HARD

FOR HANDLING SLURRIES / SOLIDS UP TO 35-40%
ELIMINATE USE OF SLURRY MECHANICAL SEALS AND ALSO
ELIMINATES PUMPAGE CONTAMINATION AND PRODUCT
DILUTION

We took the step and SAGI was founded in the year 1991. Since initial days our strength has been time bound execution and customer satisfaction.
