Magnetic Drive Sealless Pumps

CM Pumps & Systems

We are authorised sales and service dealers for CM Pumps and Systems Pvt Ltd, manufacturing Magnetic Drive Stainless Steel Pump and Magnetic Drive PFA Lined Pump. The details of the products technicalities are shared below.

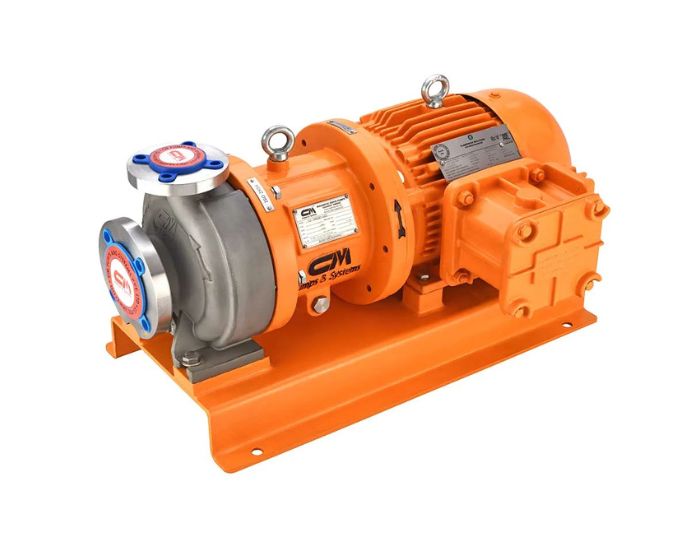

CZ Series – Magnetic Drive Chemical Process Close Coupled Pump

Single Stage, Horizontal Centrifugal Pump.
Hydraulic Performance and Dimensions according to DIN EN ISO 2858
Technical design based on DIN EN ISO 15783
Permanent Magnet Drive
Maintenance Free
Separation of Liquid Chamber to
Atmosphere by Means of Isolation Shell
Slip less Power Transfer
Materials: Steel, Stainless Steel, Nickel Based Materials
Close Coupled Block Design
Hydraulically balanced impeller for minimum bearing loads
Product-Lubricated Journal Bearings; made of Silicon Carbide (SSIC) or Customized Materials.

Technical Data :

Operation Range
3 Flow Rate : max. 100m /h
Delivery Head : max. 100 metre
Pressure Rating : Class 150
Temperatures : -35°C to +250°C
Kinematic viscosities : 0.5 to 350 mm /s

2 POLE (2900 RPM)

Pump Model	Size Description			Nominal duty point		dimension in millimeters
	Ø inlet mm	Ø outlet mm	impeller (nominal) mm	Q m³/h	H M	Pump				Support							Motor
	Ø inlet mm	Ø outlet mm	impeller (nominal) mm	Q m³/h	H M	A	f	h1	h2	h3	m1	m2	m3	n1	n2	S1	hp	kw	rpm	Rated Amps
CZ 25x25 -125	25	25	125	4	20	82	425	112	142	340	465	405	62	300	270	Ø16	1	0.75	2900	1.6
CZ 32x25 -125	32	25	125	5	20	82	475	112	142	340	465	405	62	300	270	Ø16	2	1.1	2900	2.3
CZ 32x25 -150	32	25	150	5	20	82	475	112	142	340	465	405	62	300	270	Ø16	2	1.5	2900	3.1
CZ 50x32 -125	50	32	125	12.5	20	80	665	112	140	338	604	554	46	338	308	Ø16	3/5	2.2/3.7	2900	4.3/7
CZ 50x32 -160	50	32	160	12.5	32	80	665	132	160	380	604	554	46	338	308	Ø16	5/7.5	3.7/5.5	2900	7/10
CZ 50x32 -200	50	32	200	12.5	50	80	720	160	180	430	700	675	50	350	320	Ø16	10/12.5	7.5/9.3	2900	13.7/16.5
CZ 50x32 -250	50	32	250	12.5	80	100	800	180	225	490	700	675	50	400	370	Ø16	15/20	11/15	2900	19.3/26
CZ 65-40 -125	65	40	125	25	20	80	665	112	140	338	604	554	46	338	308	Ø16	5/7.5	3.7/5.5	2900	7/10
CZ 65x40 -160	65	40	160	25	32	80	665	132	160	380	604	554	46	338	308	Ø16	7.5/10	5.5/7.5	2900	10/13.7
CZ 65x40 -200	65	40	200	25	50	100	800	160	180	430	700	675	50	350	320	Ø16	12.5/15	9.3/11	2900	16.5/19.3
CZ 65x40 -250	65	40	250	25	80	100	850	180	225	500	750	700	50	450	410	Ø16	20/30	15/22.5	2900	26/37.5
CZ 80x50 -125	80	50	125	50	20	100	700	132	160	380	650	600	50	338	308	Ø16	7.5/10	5.5/7.5	2900	10/13.7
CZ 80x50 -160	80	50	160	50	32	100	800	160	180	430	650	600	50	338	308	Ø16	12.5/15	9.3/11	2900	16.5/19.3
CZ 80x50 -200	80	50	200	50	50	100	900	160	200	470	750	700	50	450	410	Ø16	20/30	15/22.5	2900	26/37.5

4 POLE (1450 RPM)

Pump Model	Size Description			Nominal duty point		dimension in millimeters
	Ø inlet mm	Ø outlet mm	impeller (nominal) mm	Q m³/h	H M	Pump				Support							Motor
	Ø inlet mm	Ø outlet mm	impeller (nominal) mm	Q m³/h	H M	A	f	h1	h2	h3	m1	m2	m3	n1	n2	S1	hp	kw	rpm	Rated Amps
CZ 25x25 -125	25	25	125	2	5	82	400	112	142	340	440	400	62	300	270	Ø16	0.25	0.18	1450	0.56
CZ 32x25 -125	32	25	125	3	5	82	400	112	142	340	440	400	62	300	270	Ø16	0.25	0.18	1450	0.56
CZ 32x25 -150	32	25	150	3	10	82	450	112	142	340	440	400	62	300	270	Ø16	0.5	0.37	1450	1
CZ 50x32 -125	50	32	125	6.3	5	80	600	112	140	338	580	530	46	338	308	Ø16	0.5	0.37	1450	1
CZ 50x32 -160	50	32	160	6.3	8	80	600	132	160	380	580	530	46	338	308	Ø16	1	0.75	1450	1.7
CZ 50x32 -200	50	32	200	6.3	12.5	100	600	160	180	430	650	600	50	350	320	Ø16	1.5	1.1	1450	2.4
CZ 50x32 -250	50	32	250	6.3	20	100	650	180	225	490	650	600	50	400	370	Ø16	3	2.2	1450	4.3
CZ 65-40 -125	65	40	125	12.5	5	80	600	112	140	338	580	530	46	338	308	Ø16	1	0.75	1450	1.7
CZ 65x40 -160	65	40	160	12.5	8	80	600	132	160	380	580	530	46	338	30	Ø16	1.5	1.1	1450	2.4
CZ 65x40 -200	65	40	200	12.5	12.5	100	600	160	180	430	650	600	50	350	320	Ø16	2	1.5	1450	3
CZ 65x40 -250	65	40	250	12.5	20	100	650	180	225	500	650	600	50	450	410	Ø16	4	3	1450	7.8
CZ 80x50 -125	80	50	125	25	5	100	650	132	160	380	580	530	50	338	308	Ø16	1.5	1.1	1450	2.4
CZ 80x50 -160	80	50	160	25	8	100	700	160	180	430	580	530	50	338	308	Ø16	2	1.5	1450	3
CZ 80x50 -200	80	50	200	25	12.5	100	750	160	200	470	650	600	50	450	410	Ø16	4	3	1450	7.8

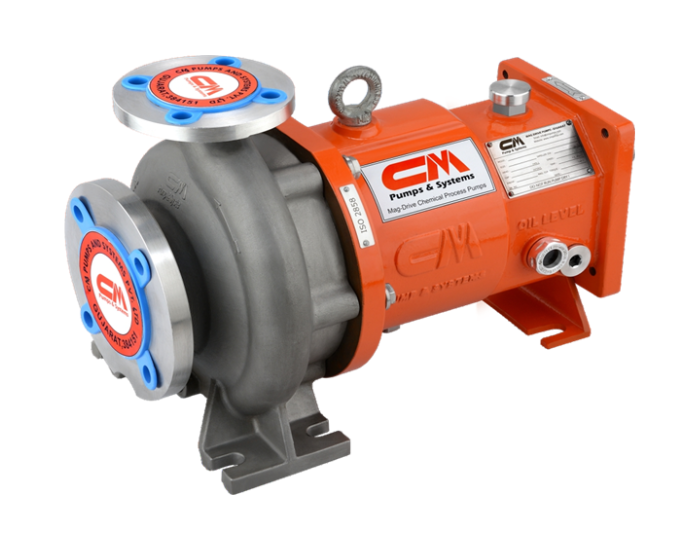

CZ Series – SS Magnetic Drive Chemical Process

Single Stage, Horizontal Centrifugal Pump.
Hydraulic Performance and Dimensions according to DIN EN ISO 2858
Technical design based on DIN EN ISO 15783
Permanent Magnet Drive
Maintenance Free
Separation of Liquid Chamber to Atmosphere by Means of Isolation Shell
Slipless Power Transfer
Materials: Steel, Stainless Steel, Nickel Based Materials
Extended Coupled Block Design
Hydraulically balanced impeller for minimum bearing loads
Product-Lubricated Journal Bearings; made of Silicon Carbide (SSIC) or Customized Materials.

Technical Data :

Operation Range
Flow Rate : max. 100m3/h
Delivery Head : max. 100 metre
Pressure Rating : Class 150
Temperatures : -35°C to +250°C
Kinematic viscosities : 0.5 to 350 mm2/s

Metalic Magnetic Drive Chemical Process Pump

Close Coupled
CZ Series

Technical Data

Operation Range
Single Stage
Flow Rate: max. 300m³/h
Delivery Head: max. 100 metre
Pressure Rating: Class 150
Temperatures: -35°C to +250°C
Kinematic viscosities: 0.5 to 500 mm²/s
Standards DIN EN ISO 2858
Standards. DIN EN ISO 15783

Extended

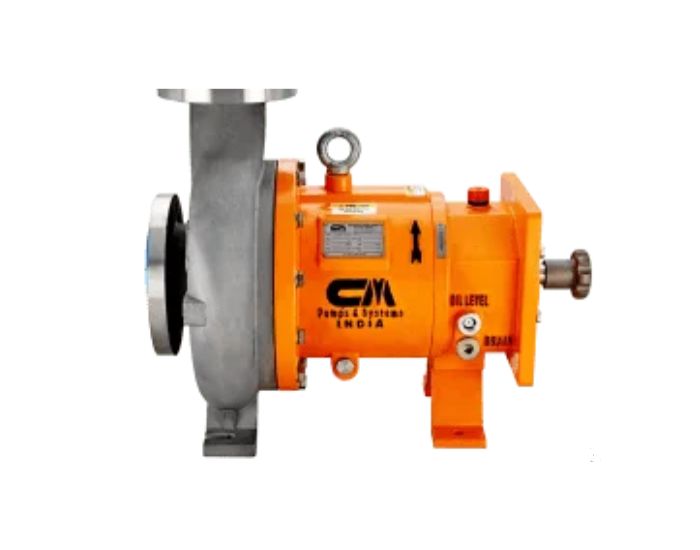

CBZ Series

Technical Data

Operation Range
Multi Stage
Flow Rate: max. 100m³/h
Delivery Head: max. 500 mtr
Pressure Rating: Class 150/300/600
Temperatures: -35°C to +250°C
Kinematic viscosities: 0.5 to 500 mm²/s

Casing & Impeller Materials

Stainless steel SS 316, SS 316L, SS 304, SS 304L Other materials duplex alloys, nickel-base alloys
(e.g. Hastelloy),
Working Principle: Radial flow pump
Priming Method: Flooded suction
Sealing System: Magnetic coupling
ATEX: 2014/34/EU
Ex II 2 GD c T2

Multi Stage

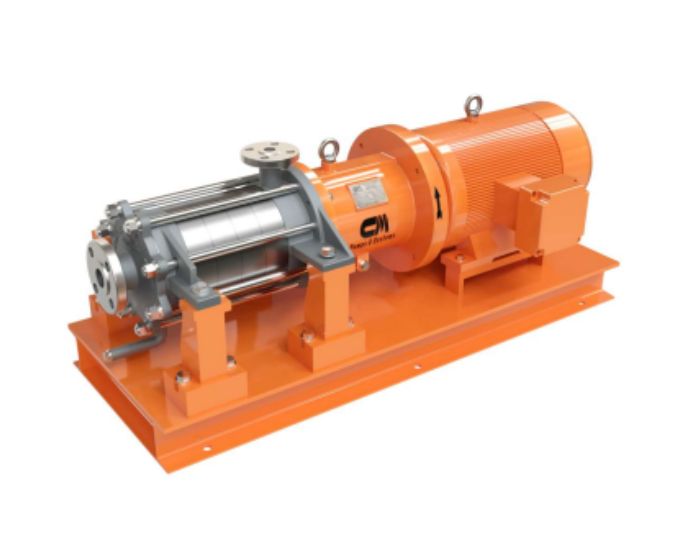

CZMS Series

Description

Horizontal Centrifugal Pump.
Permanent Magnet Drive
Maintenance Free
Separation of Liquid Chamber to Atmosphere by Means of Isolation Shell
Slipless Power Transfer
Materials: Steel, Stainless Steel, Nickel Based Materials
Close Coupled Block Design
Hydraulically balanced impeller for minimum bearing loads
Product-Lubricated Journal Bearings; made of Silicon Carbide (SSIC) or Customized Materials

Non Metalic Magnetic Drive Chemical Process Pump

Close Coupled

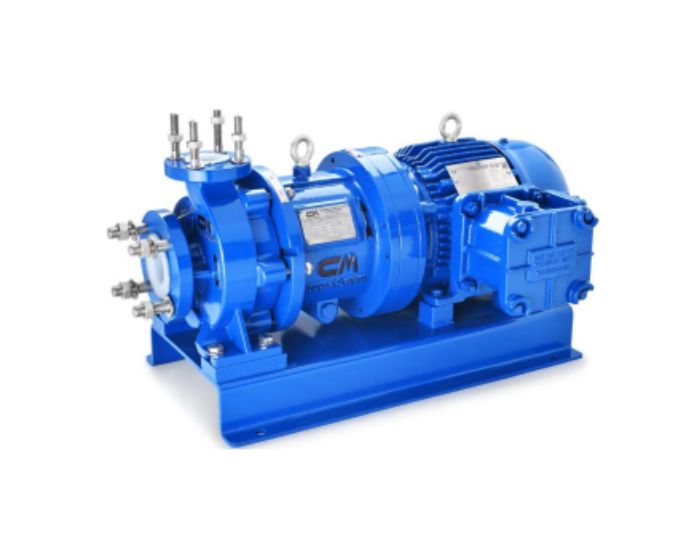

CZP Series

Technical Data

Operation Range
Flow Rate: max. 300m³/h
Delivery Head: 3 to 90 mtr.
Pressure Rating: Class 150
Temperatures: -20°C to +200°C
Kinematic viscosities: 0.5 to 350 mm/s
Solid handling: up to 5% solids concentration, depending on the pumped fluid

Casing & Impeller Materials

PFA Lined, FEP Lined, PVDF Lined

Working Principle: Radial flow pump
Stages: Single stage
Priming Method: Flooded suction
Sealing System: Magnetic coupling
Standards: DIN EN ISO 2858
Standards: DIN EN ISO 15783
Ex) 112GDcT3

Extended

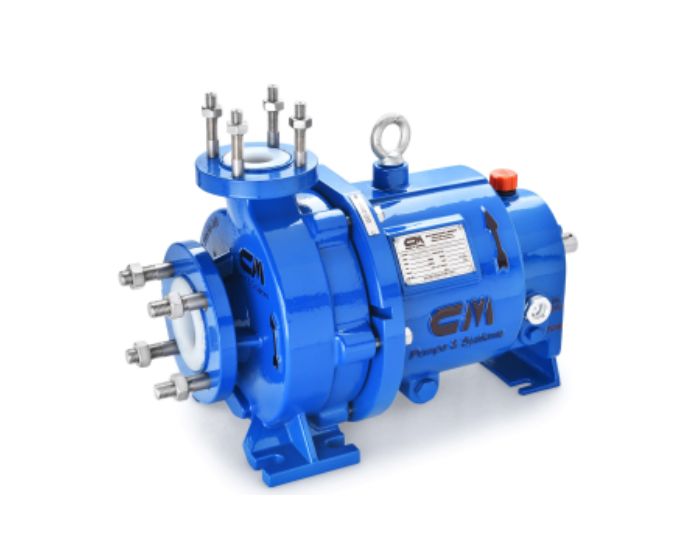

CZPB Series

Description

Single Stage, Horizontal Centrifugal Pump.
Hydraulic Performance and Dimensions according to DIN EN ISO 2858
Technical design based on DIN EN ISO 15783
Permanent Magnet Drive
Maintenance Free
Separation of Liquid Chamber to Atmosphere by Means of Isolation Shell
Slipless Power Transfer
Materials: PFA, FEP, PVDF
Close Coupled Block Design
Hydraulically balanced impeller for minimum bearing loads
Product-Lubricated Journal Bearings; made of Silicon Carbide (SSiC) or Customized Materials
