Mechanical Seals & Sealing System

We provide Mechanical Seals of reputed manufactures as per requirement. Additionally we support design, production and supply of customised seals for critical application. We can offer various different commercial agreements, like, ARC on supply of various seals and spares existing in your plant which can be designed as per your need.

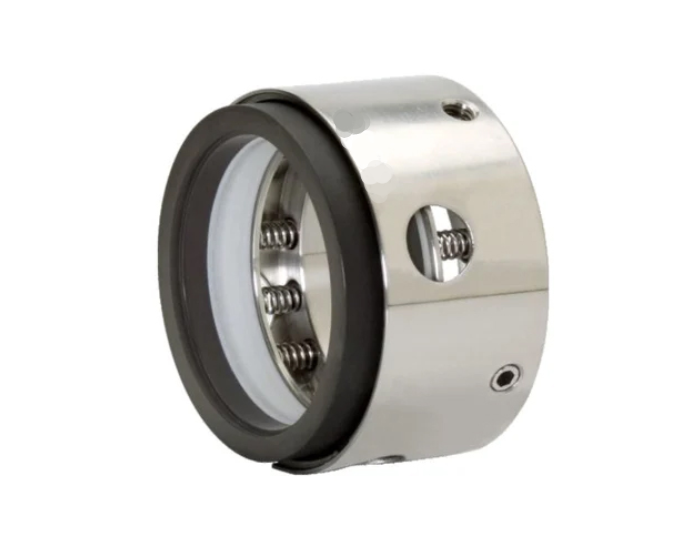

MULTI SPRING SEAL

Type S-VT- 9 /S- VT – 9W are multi spring, pusher type unbalanced seals used for universal applications. The seals are compact in design suiting all types of rotating equipment, pumps and mixers. Drive lugs in the retainer will provide torque transmission and reduce slippage on shaft and sleeve. A snap ring holds all components together, helping in easy installation. The parts are interchangeable, VT- 9 can be converted to VT – 9W by just changing the seal ring and the secondary member.

APPLICATION :

General Chemicals
Petrochemicals Refineries
Light hydrocarbons, Water
Performance Range
Shaft Diameter dl: 18mm to 100mm
Pressure p: 10 Bar(Max)
Temperature t: -20 C to 220 C
Velocity v : 20 m/sec. Materials
Seals Faces: Carbon, Ceramic, SiC, Tung, Carbide
Metal Parts: SS316, SS304, Hastelloy-C, Alloy 20
O-rings: Elastomers (S-VT-9),PTFE Wedge(S-VT-9W)

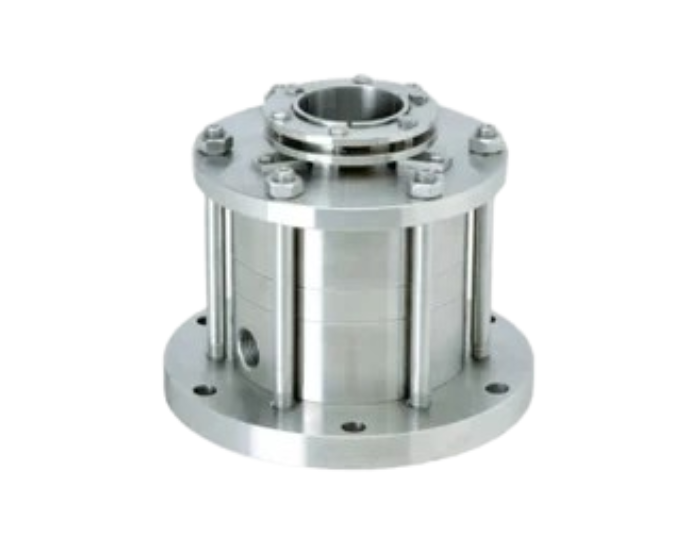

AGITATOR SEAL

Type S- VCB – SH/C1 are present factory assembled cartridge seals for use in Agitators, Mixers and Reactor Vessels. The seal construction varies slightly for top entry vessels, side entry vessels and bottom entry vessels. The seals are designed to the shortest shaft length and the bearings are located as close to the vessel body to minimize the deflection.

APPLICATION :

General Chemicals and its vapours.
Petrochemicals and its vapours
Independent on direction of rotation
Seal Characteristics
Single Seal / Double Seal
Unbalanced / Balanced
Independent on direction of rotation
Performance Range
Shaft Diameter dl : 25mm to 150mm
Pressure p : vacuum 40 Bar(Max)
Temperature t : -20 C to 220 C
Velocity v : 4 m/sec. Materials
Seals Faces: Carbon, SiC, Tung, Ceramic
Metal Parts: SS316, Hastelloy-C Alloy 20

O-rings: Elastomers ,PTFE

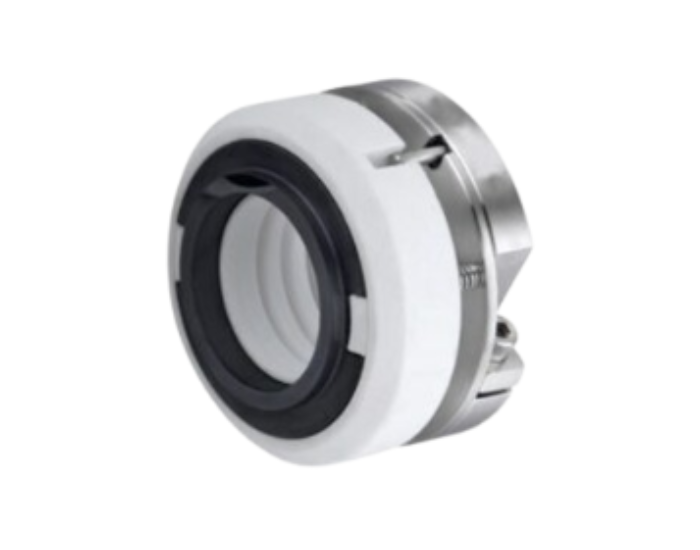

PTFE BELLOW SEAL

Type S- VM – 20 RS Seal faces are replaceable and can be supplied with hard materials suitable for abrasive services.

APPLICATION :

Extremely Corrosive application

Seal Characteristics
SingleSeal
Outside Mounted
Independent of direction of rotation
Performance Range
Shaft Diameter dl: 25mm to 150mm
Pressure p: vacuum 40 Bar(Max)
Temperature t: -20 C to 220 C
Velocity v: 4 m/sec.
Materials
Seals Faces: GFT, SiC, Ceramic
Metal Parts: SS304,SS316, Hast-C
O-rings: PTFE Bellow

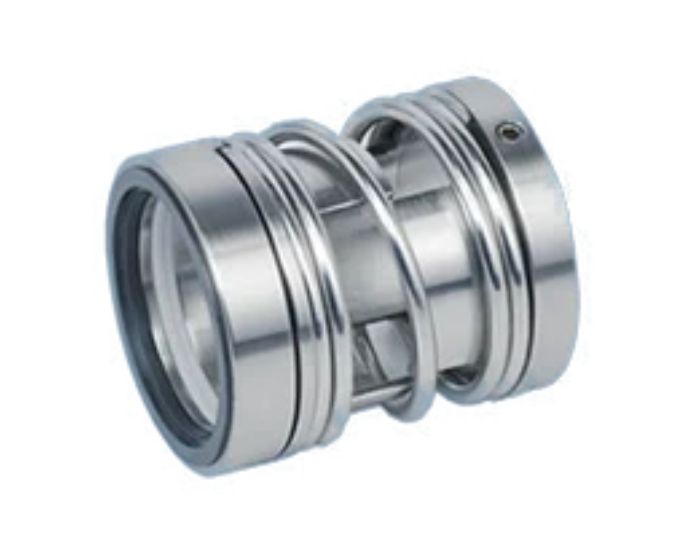

Type S-VSS

Type VSS is single coil spring seal developed for light contamination, dirty media and clogging type application. The mechanical drive of this seal is realised by grub screw which lock onto the shaft. Seal is not dependent on direction of shaft
rotation.

Seal Characteristics

Single Seal
Balanced
Helical Coil spring
Independent of direction of rotation

Applications

General Chemicals
Petrochemicals
Light Hyrocarbons

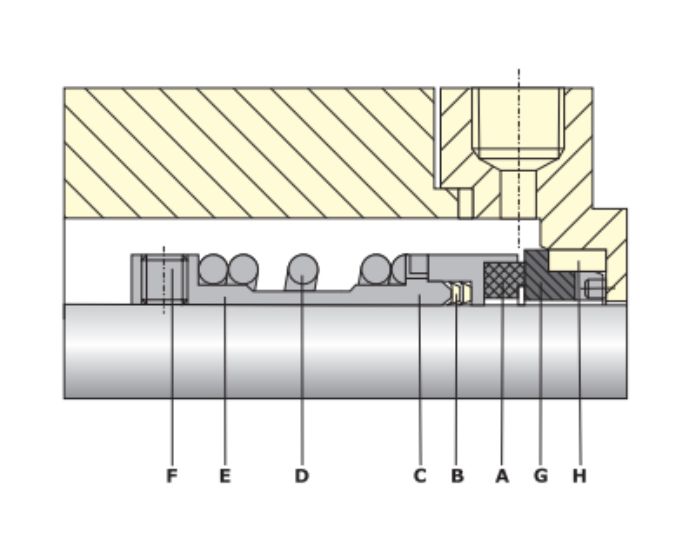

Part No.

A

B

C

D

E

F

G

H

Description

Seal Face

V-Packing

Seal Adapter

Spring

Drive Collar

Grub Screw

Stationary Seat

Stationary Packing

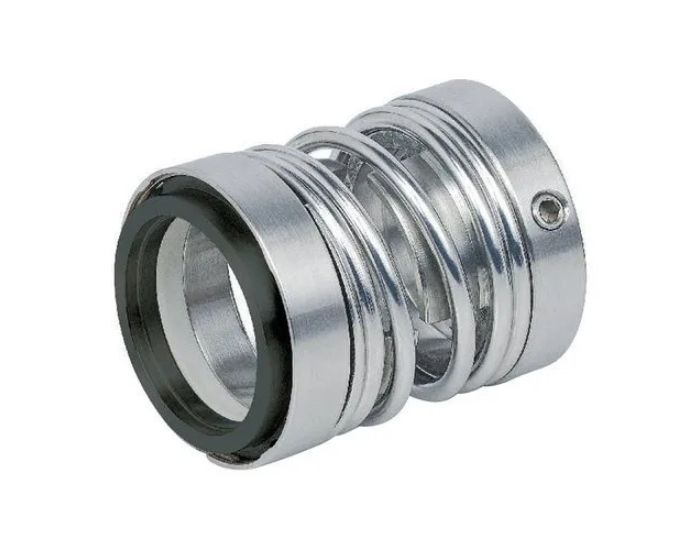

Type - S-VSS-W

Solid seal ring construction

Performance Range

Shaft Diameter d1 : 10…100mm
Pressure p : 30 bar (max)
Temperature t : -20…140 C
Velocity v : 15 m/sec

Materials

Seal Faces : Carbon,Ceramic, SiC, Tung. Carbide
Metal Parts : SS304, SS316, Special Alloy
O-ring : Elastomers, PTFE
