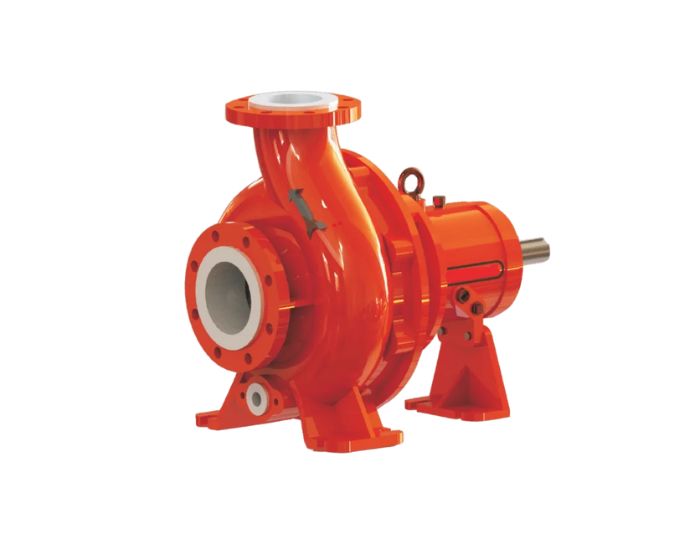

Non Metallic Process Pumps

Non Metallic Process Pumps

We have also added the below range of products in our portfolio from the leading manufacturer

Application & Technical Data :

Speciality Chemical, Steel Plant, Pickling Plant, Scrubbing System. High Temperature & Hazardous Toxic Chemical. Pharmaceutical Industries. Acidic & Alkaline Chemicals of Chloralkali Industries.
  • PERFORMANCE RANGE
  • HEAD – UPTO 100 MTS
  • CAPACITY – UPTO 1200 M3/HR
  • POWER – UPTO 450 KW
  • RPM – 1450/2900 50HZ
  • MOC – PVDF, FEP, PFA, PP

ISO-2858 ISO-5199

TECHNICAL DATA
Operating Frequency
50 Hz
Capacity(Q) Max.
200 m3/hr
Head(H) Max.
95 m
Motor Power (P) Max.
55 kw
Maximum Working Pressure
16 bar
Maximum Specific Gravity (SG)
2
Maximum Continuous Flow
2.5 m3/hr
Maximum Working Temperature
FEP: 180ºC, PFA: 200ºC PVDF: 110ºC
Suction & Delivery Connection
ANSI B16.5 - Class 150
Shaft Seal
Single & Double Mechenical Seals
Bearings
Rolling Element Bearings
Lubrication
Oil
Motor Compatibility
IS 1231, IEC 721, NEMA

MECHANICAL SEAL OPTION

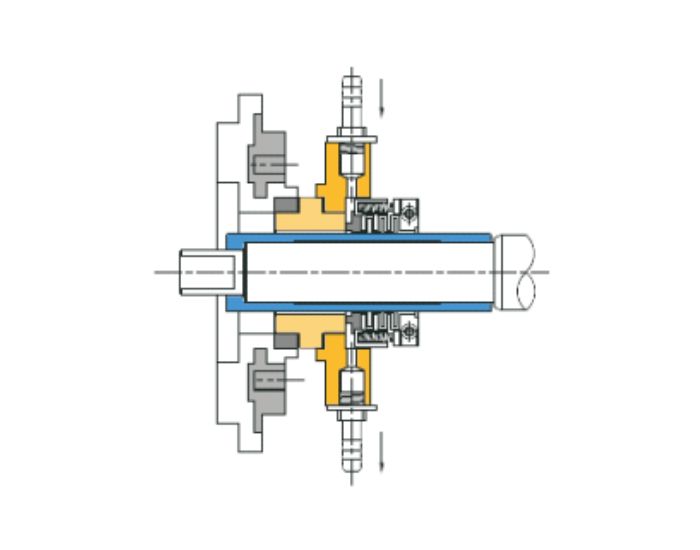

Single PTFE Below Seal

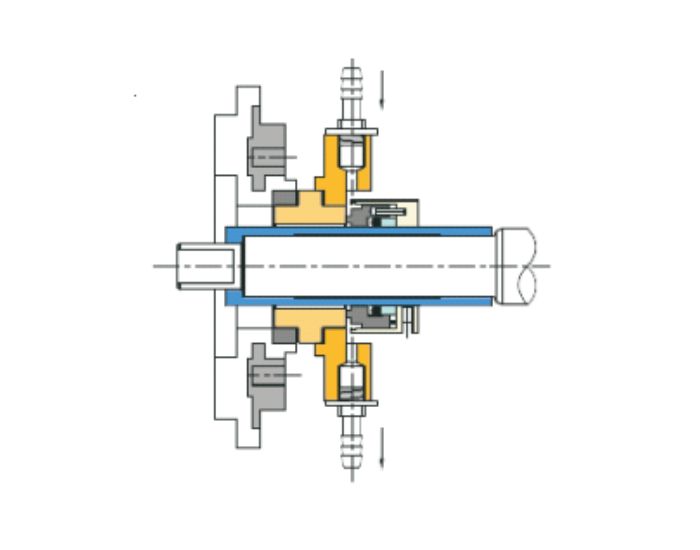

Single Pusher Seal

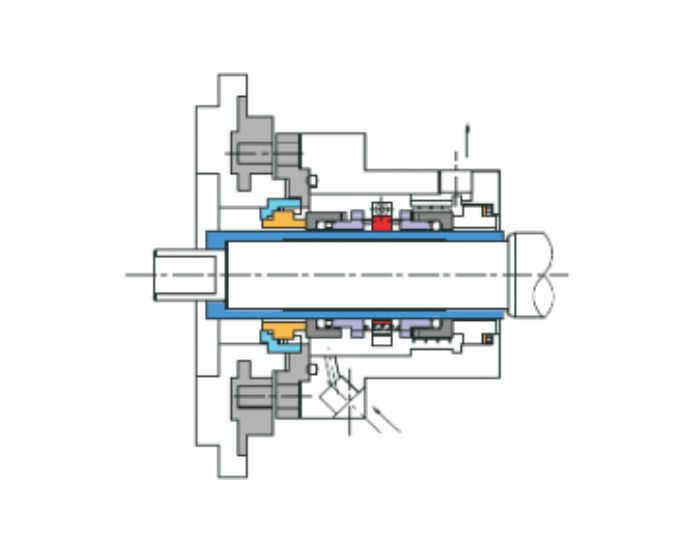

Double Pusher Seal

  • Available in Single & Double mechanical seal option.
  • We provided API plan applicable seal in our stuffing box.
MODELS

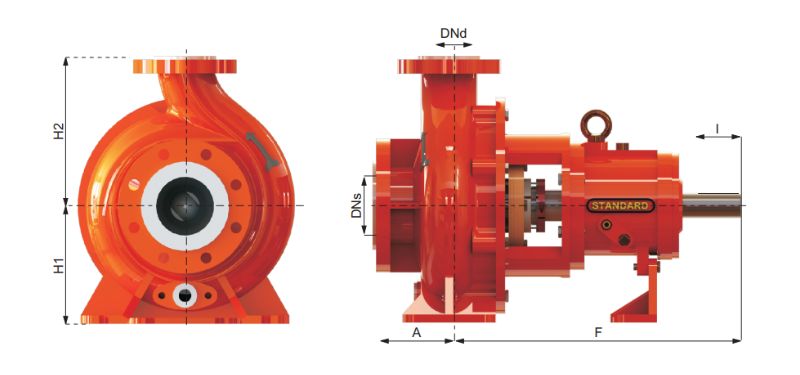

PUMP DIMENSIONS
DNs
DNd
a
f
h1
h2
l
50x32-125
50
32
80
385
112
140
50
50x32-160
50
32
80
385
132
160
50
50x32-200
50
32
80
385
160
180
50
65x40-160
65
40
80
385
132
160
50
80x50-200
80
50
100
385
160
200
50
80x50-250
80
50
125
500
180
225
50
80x65-160
80
65
100
385
160
200
50
100x65-250
100
65
125
500
200
250
80
125x80-315
125
80
125
530
250
315
80
125x100-315
125
100
140
530
250
315
110
150x125-315
150
125
140
530
280
400
110
150x125-400
150
125
140
530
315
400
110
200x150-315
200
150
160
670
315
400
110
250x200-400
250
200
180
625
355
500
110
300x250-315
300
250
250
625
400
550
110
300x250-400
300
250
200
700
375
550
140

STUFFING BOX :-

  • Fluoropolymer lined stuffing box to accommodate single
    & double mechinical seal without any modification.
  • Back pull out design provide safe, simple & quick assembly & disassembly of pump

SHAFT & BEARING :-

  • Heavyduty shaft design for minimum deflection.
  • Maximum 0.05mm deflection at stuffing box at maximum
    load.
  • Large capacity oil sump result in effective heat transfer for
    cooler bearings & extending bearing life.
  • Telescopic arrangement for semi-open impeller enables
    adjustment of impeller front clearance to obtain optimum
    hydraulic performance
  • Double O-ring seal between Bearing housing & lantern to
    prevent leakage of lubrication oil.

VOLUTE CASING :-

  • Heavy, Centre line discharge with Volute casing design in
    fluoropolymer lined construction provide the pressure
    handling capability & efficiency and smooth transfer of
    pump media from exit of the impeller to delivery.
  • Thick wall polymer moulded inside metal armour to ensure
    strong support to polymer specially at high temperature.
  • Top discharge, self- venting, back pull put.
  • Flow optimum hydraulic design.

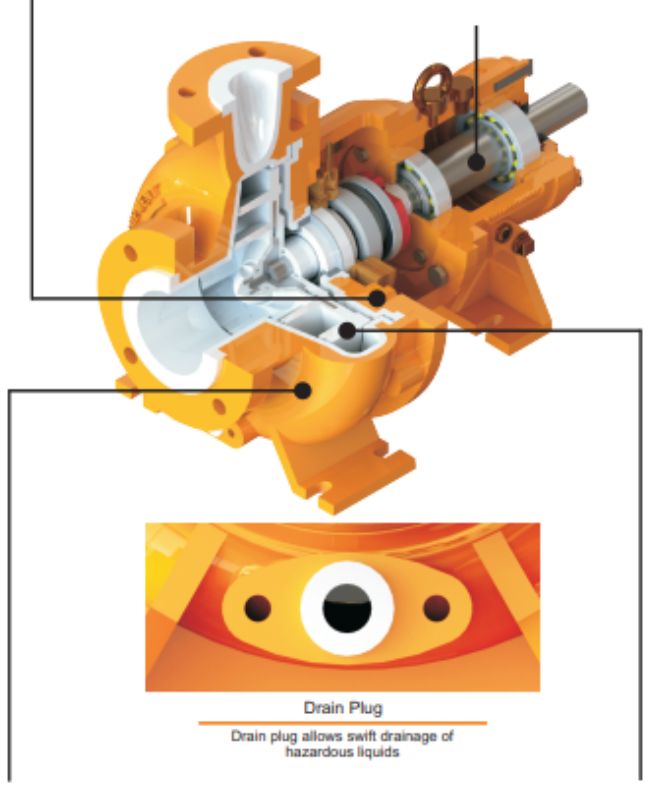

  • Option for drain plug for easy & safe drain & maximizes
    pump life.

IMPELLER :-

  • Hydro dynamically optimized semi-open redial impeller
    designed.
  • Axial forces are balanced with balancing holes & back
    vanes.
  • Positive locking of impeller & shaft prevent due to
    wrong rotation & ensure maximum torque transmission.
